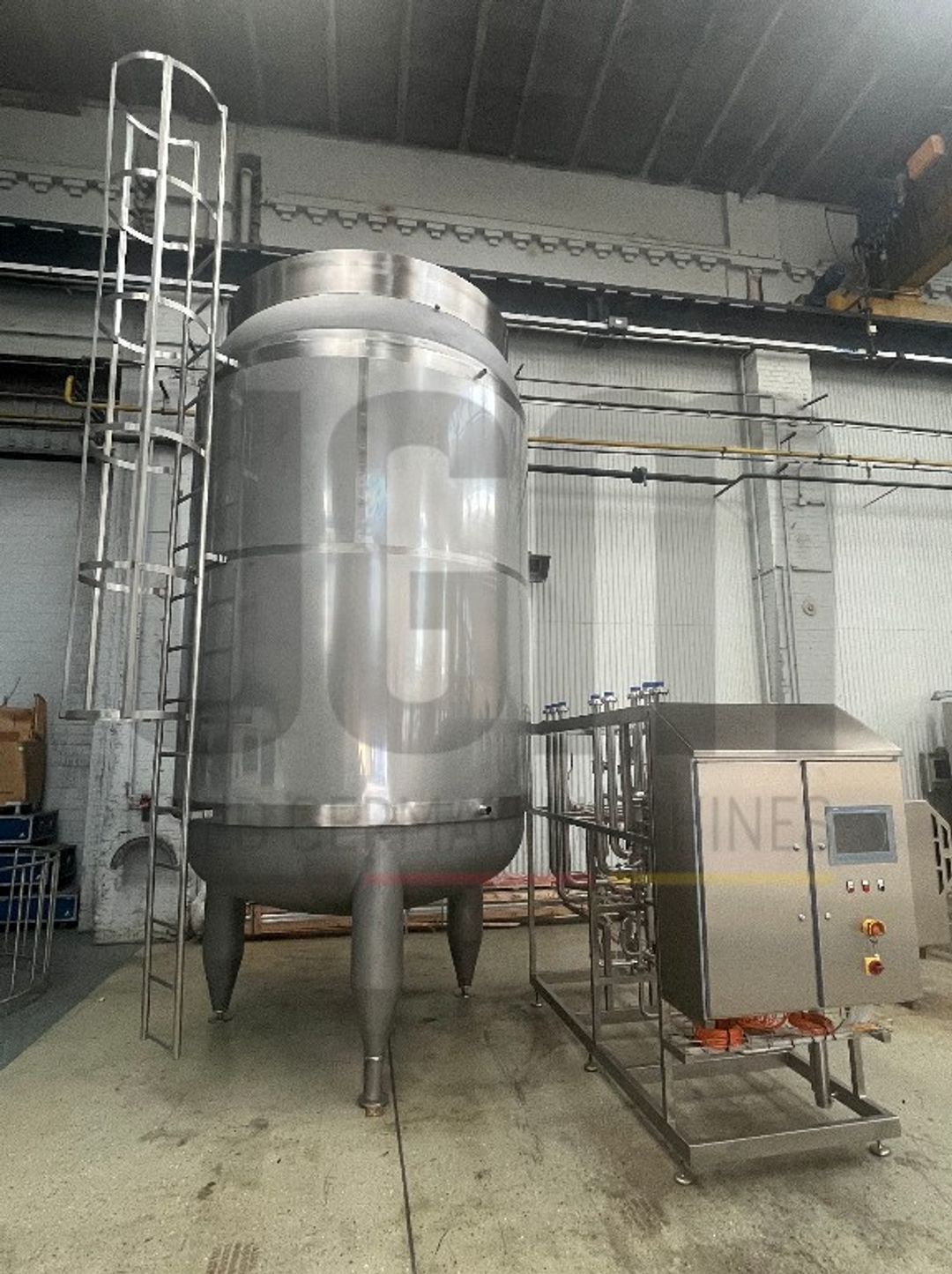

12000L STERILE TANK - NEW

Category: Sterile Tank

Make: Schneider Industries

Year: 2024

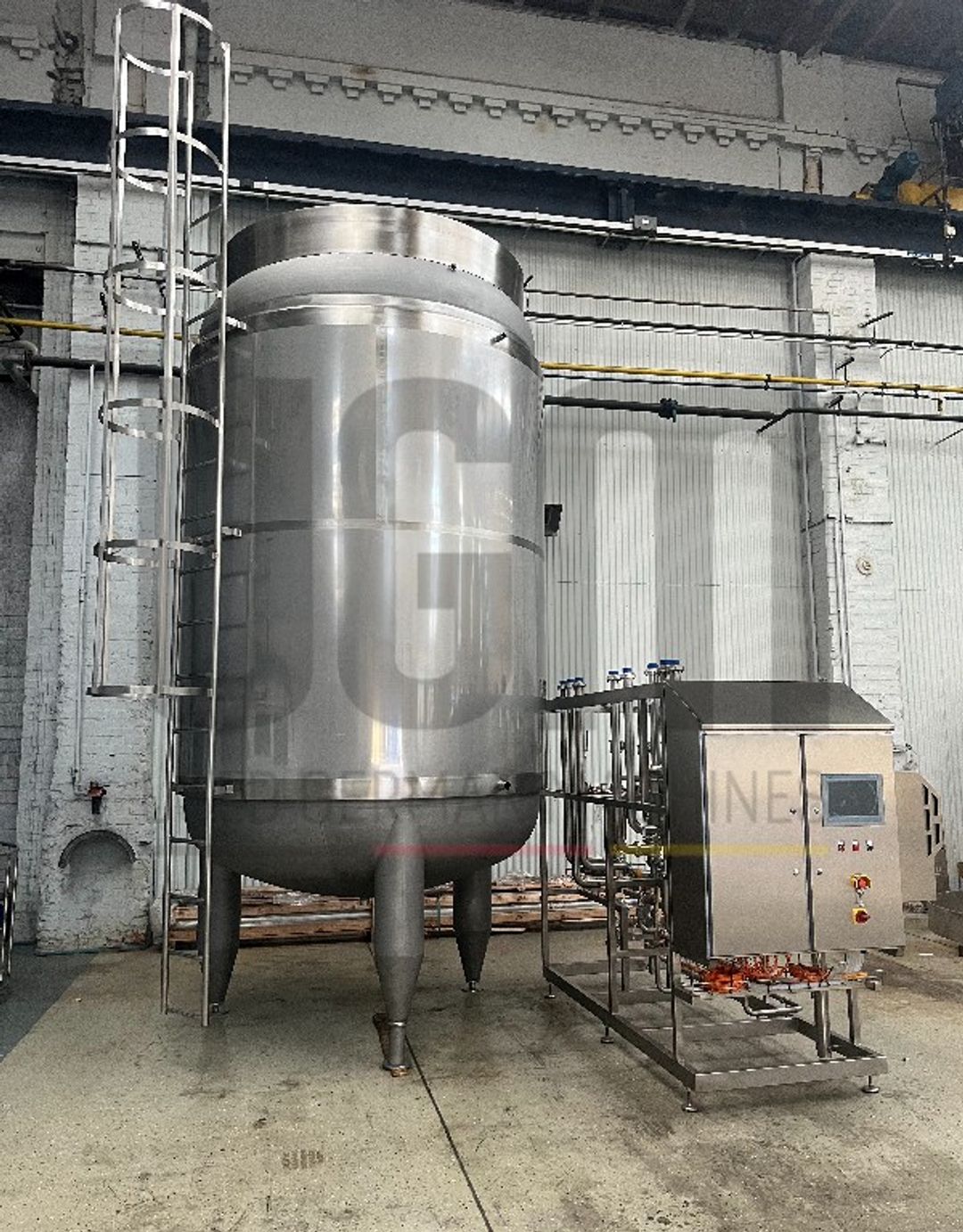

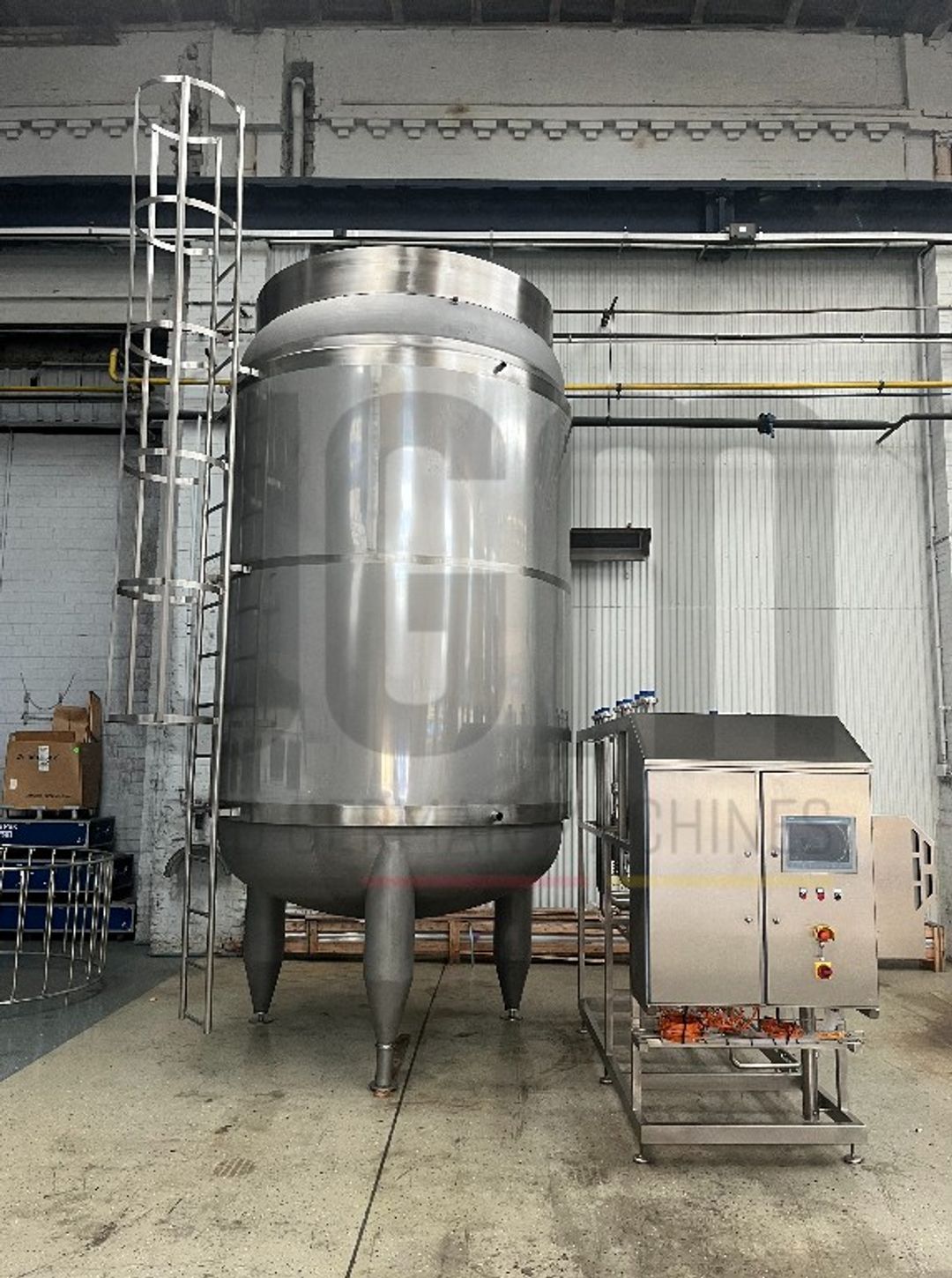

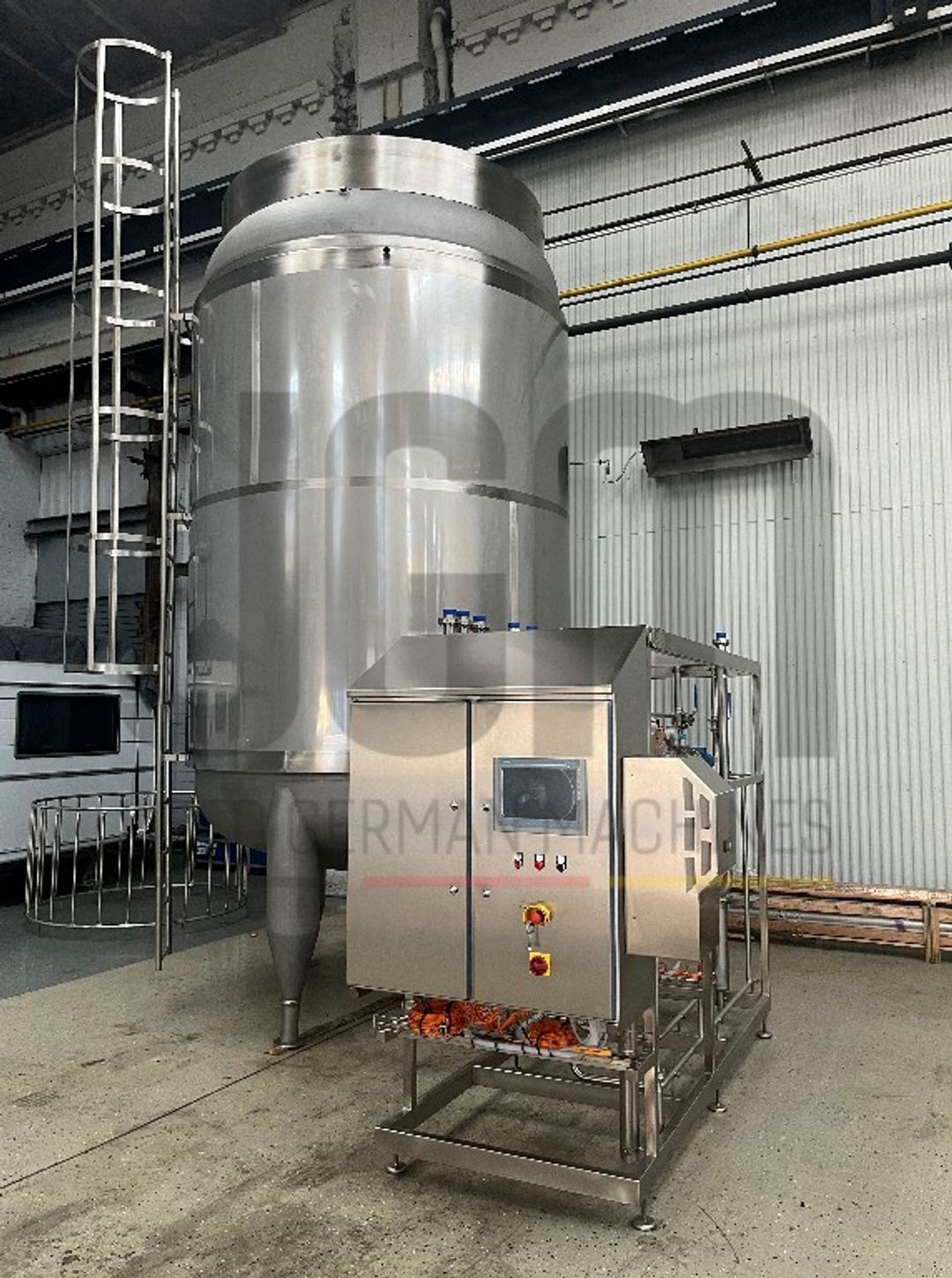

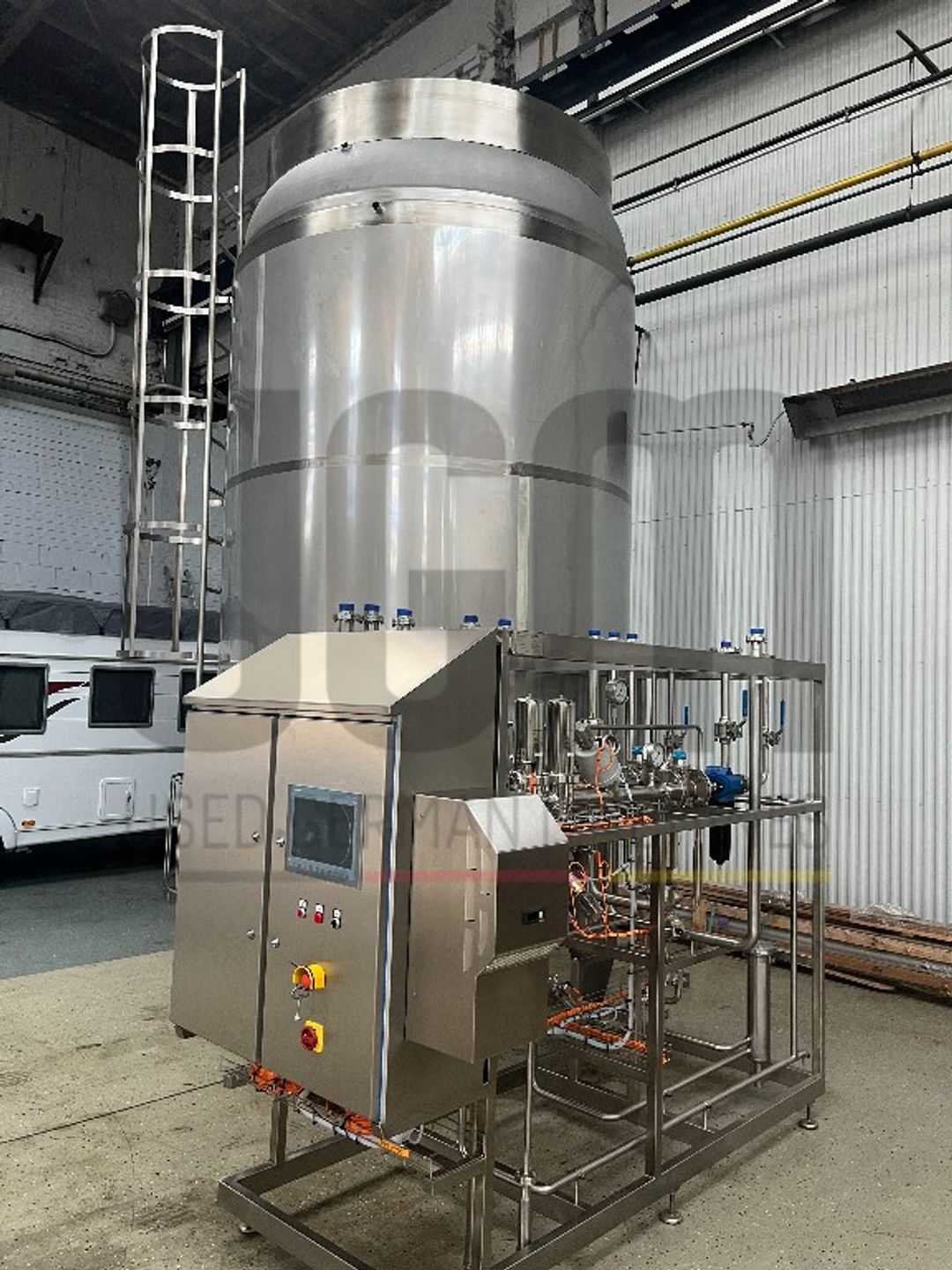

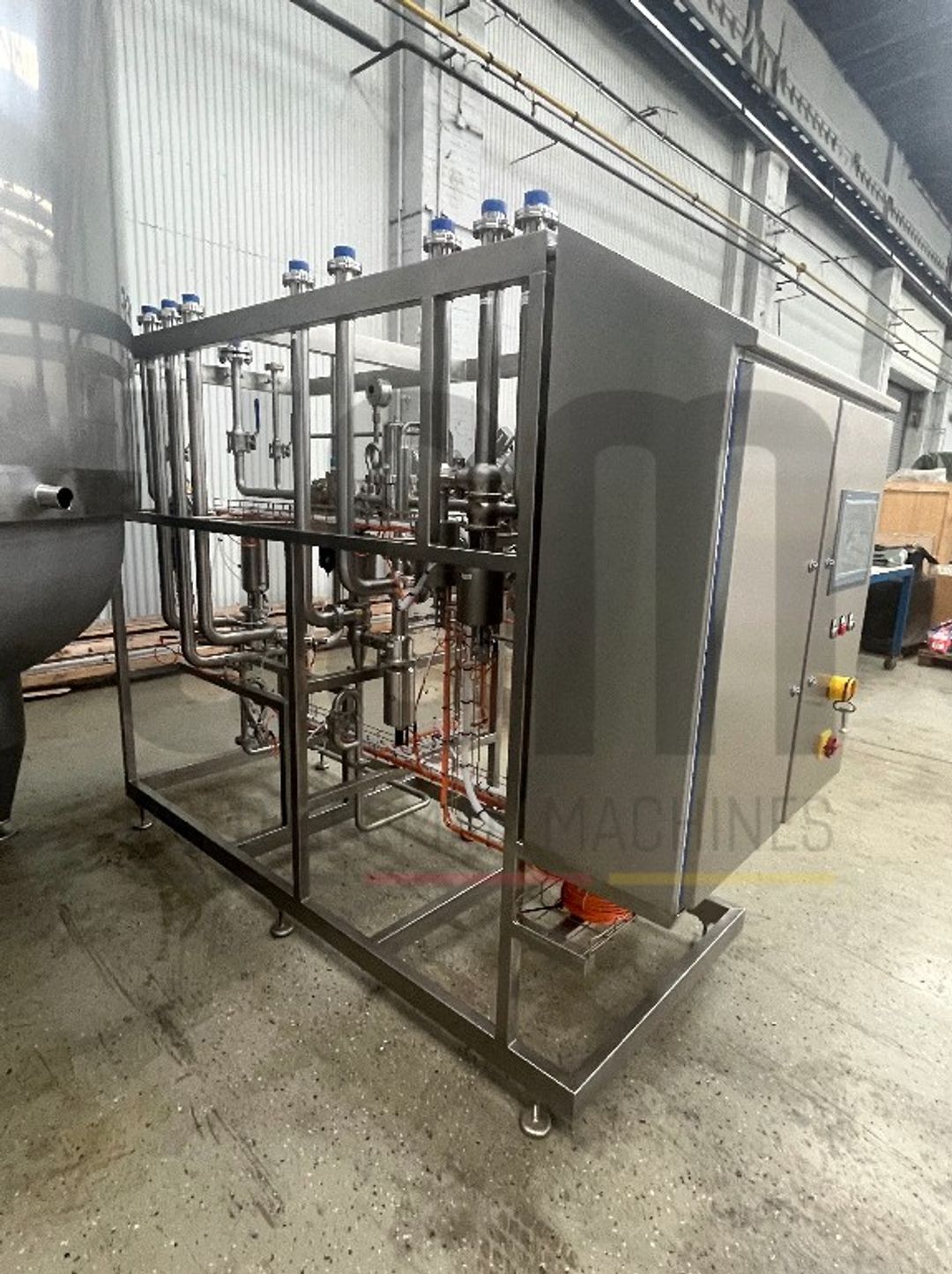

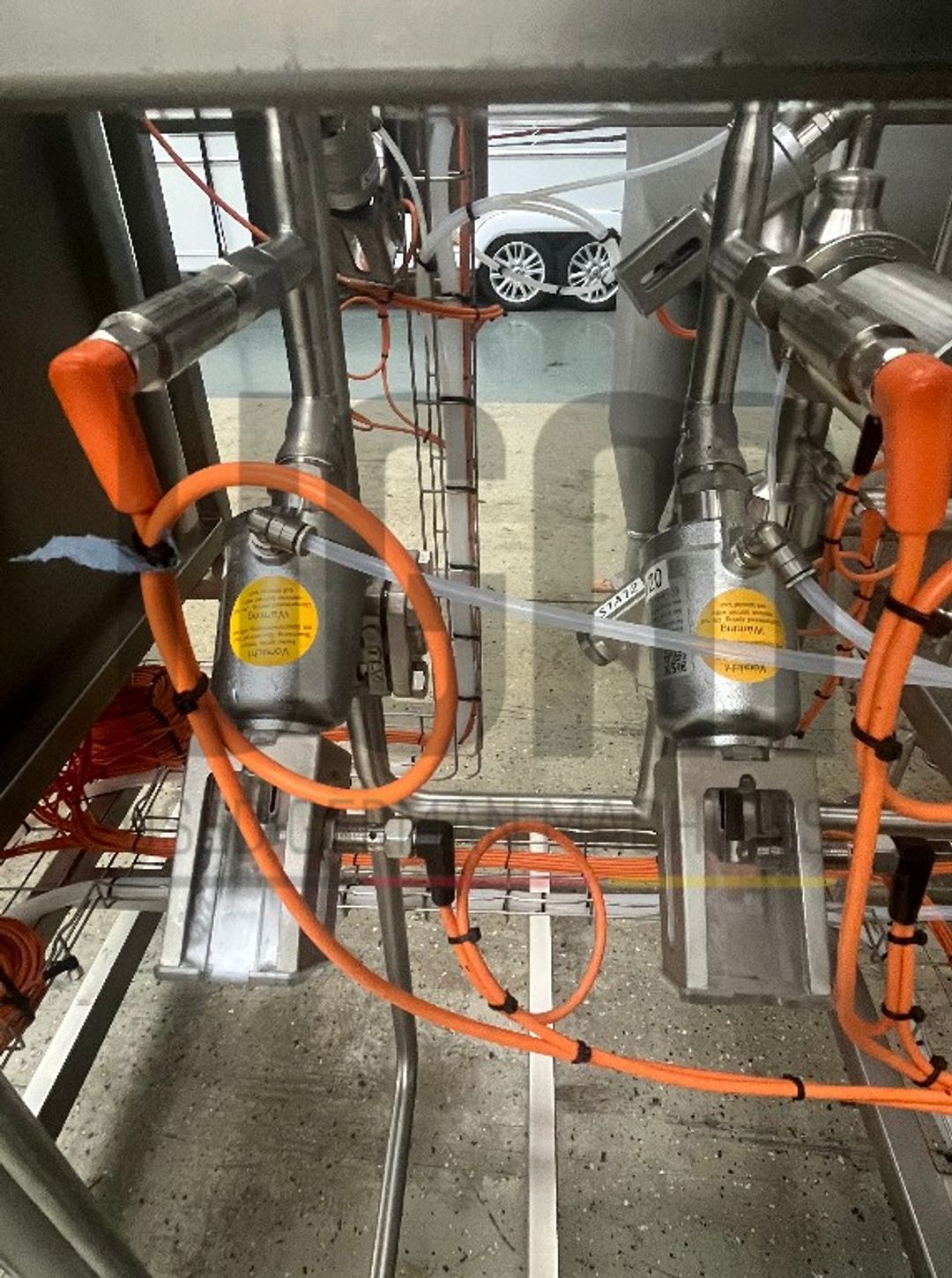

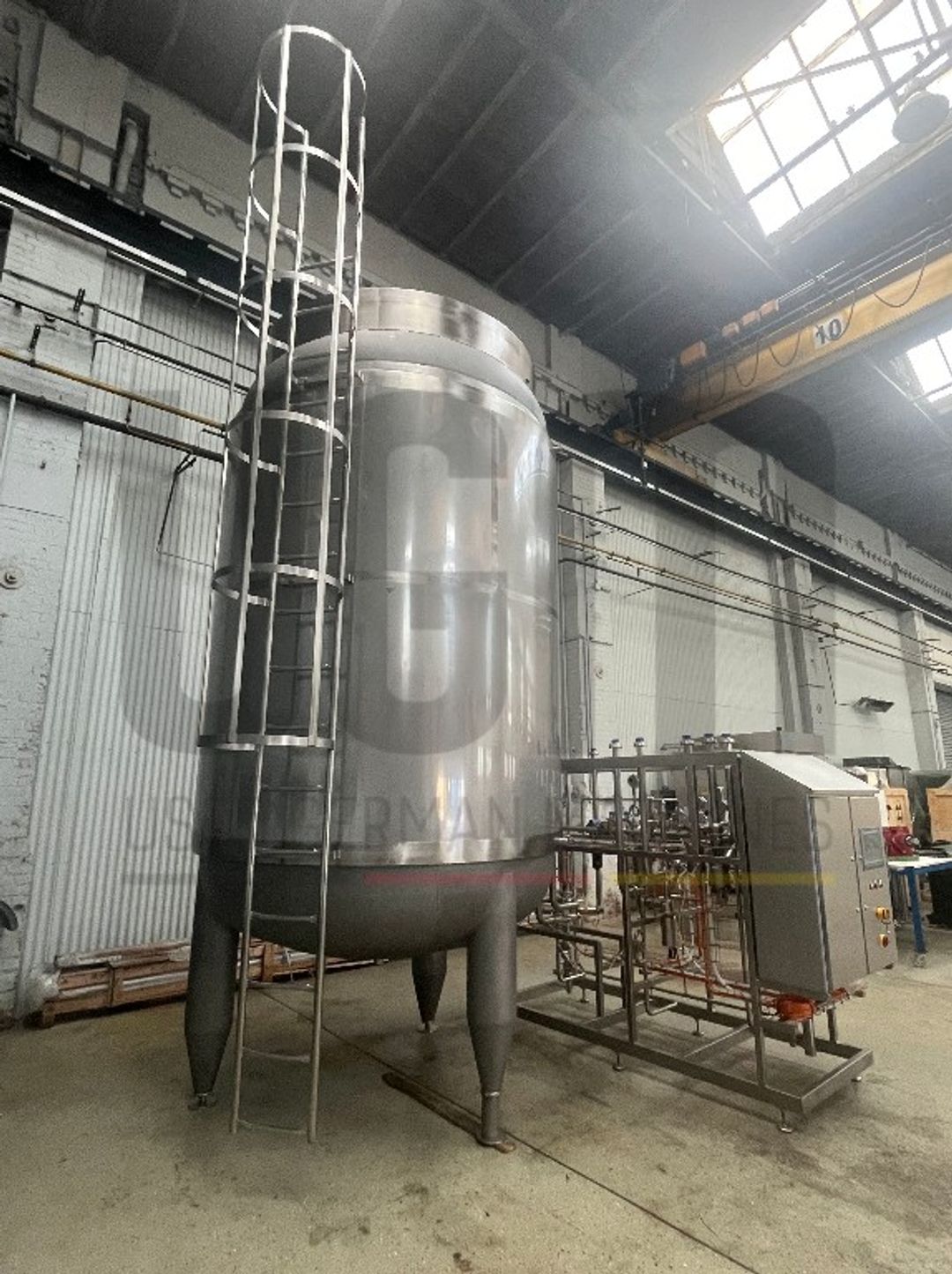

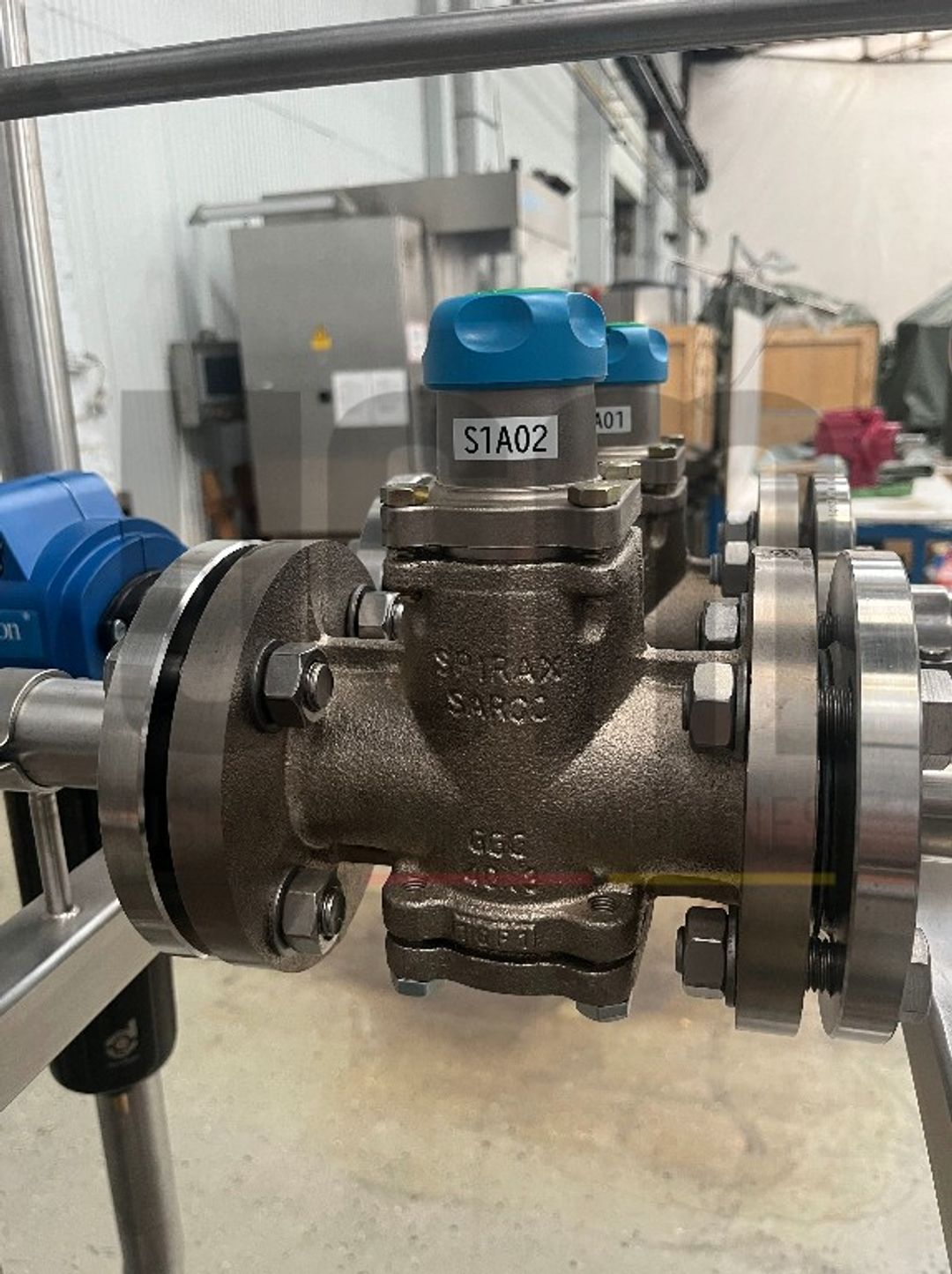

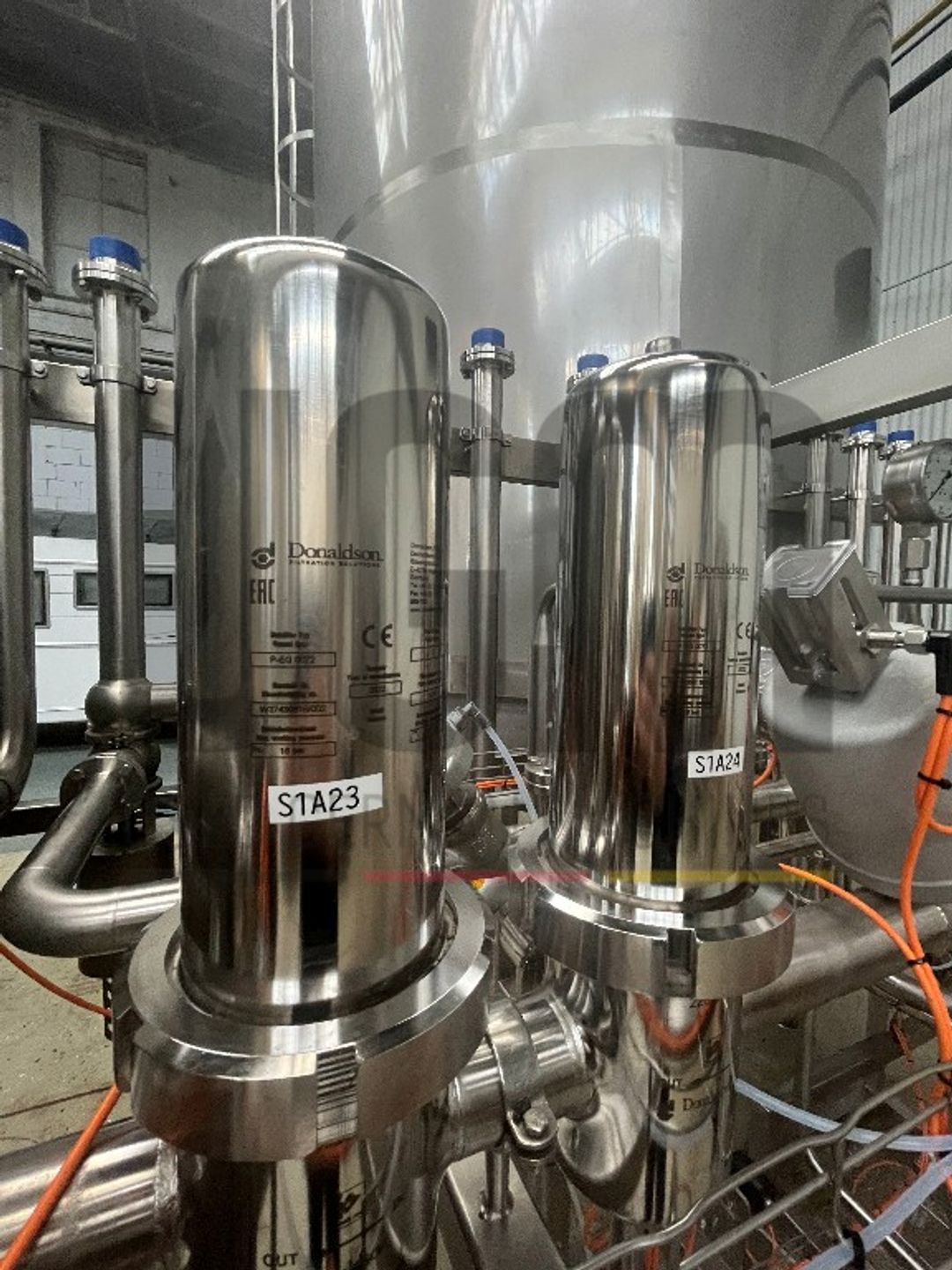

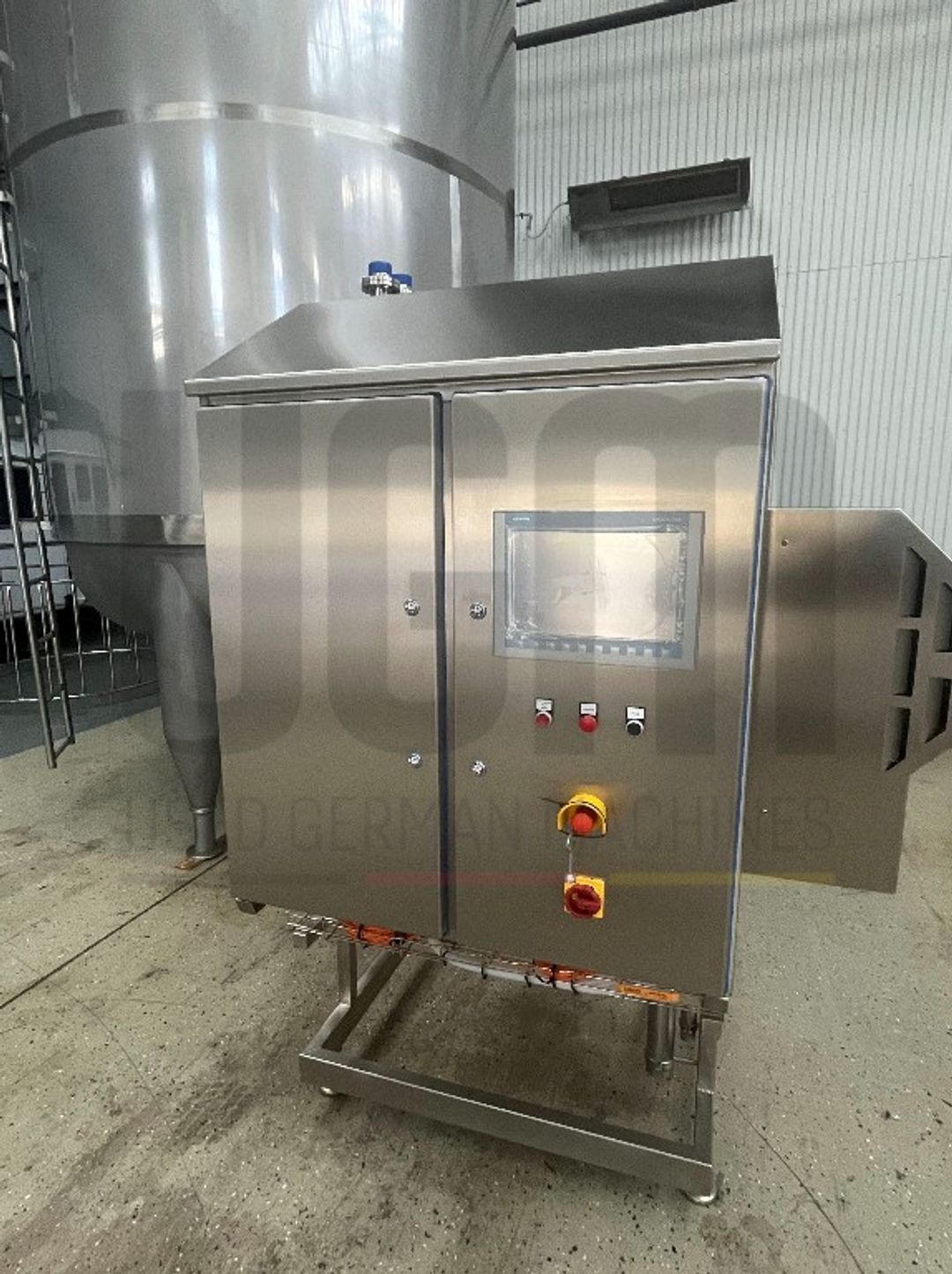

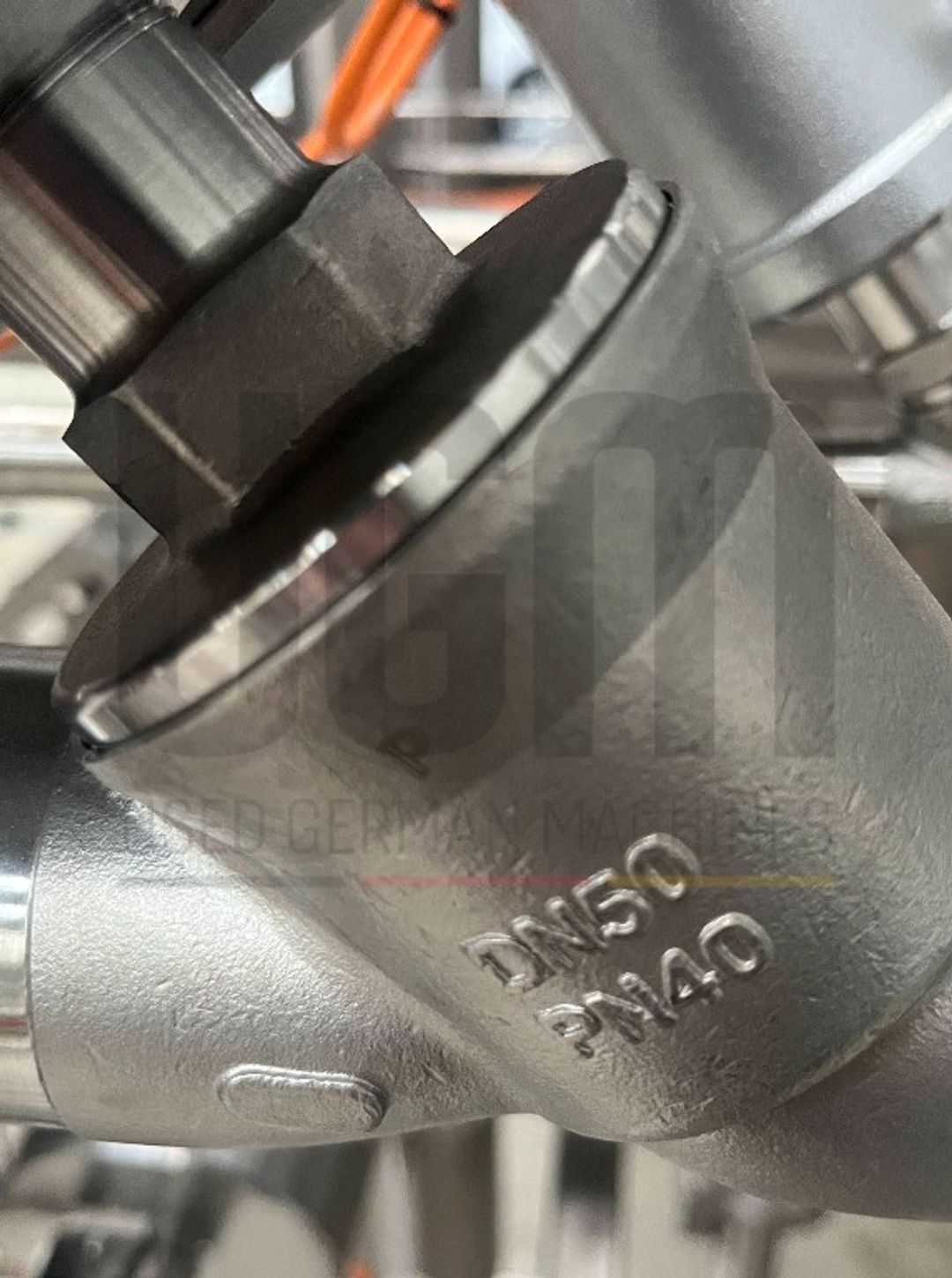

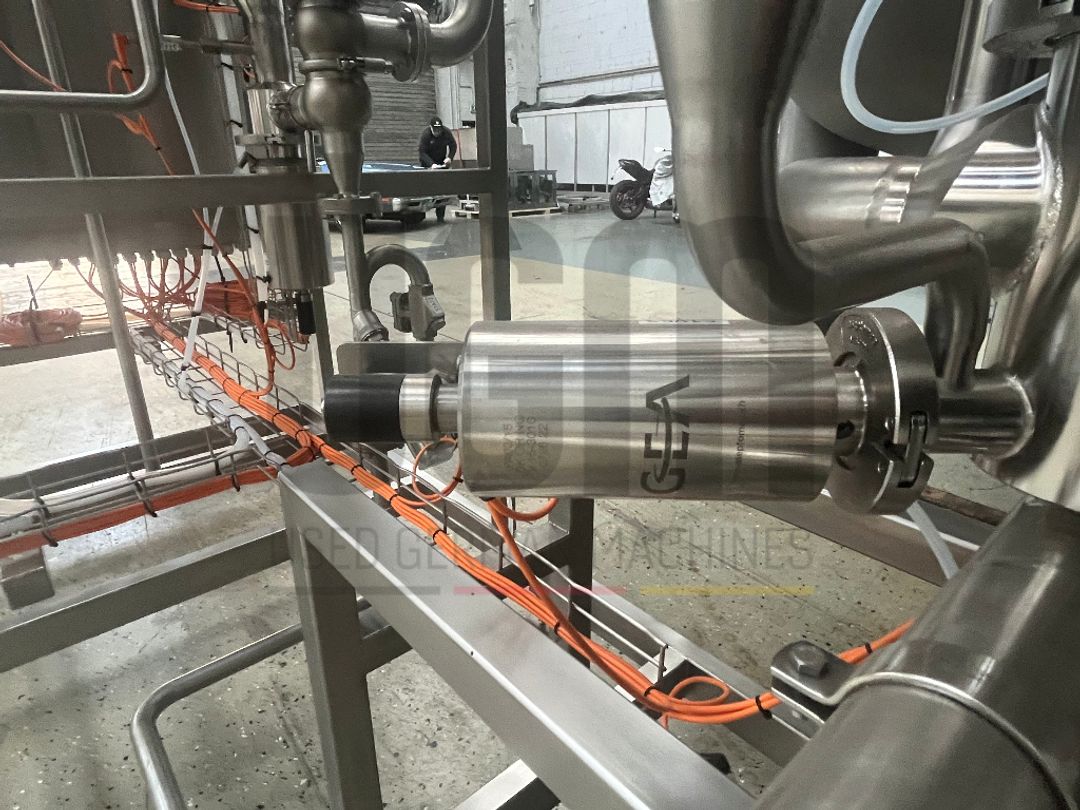

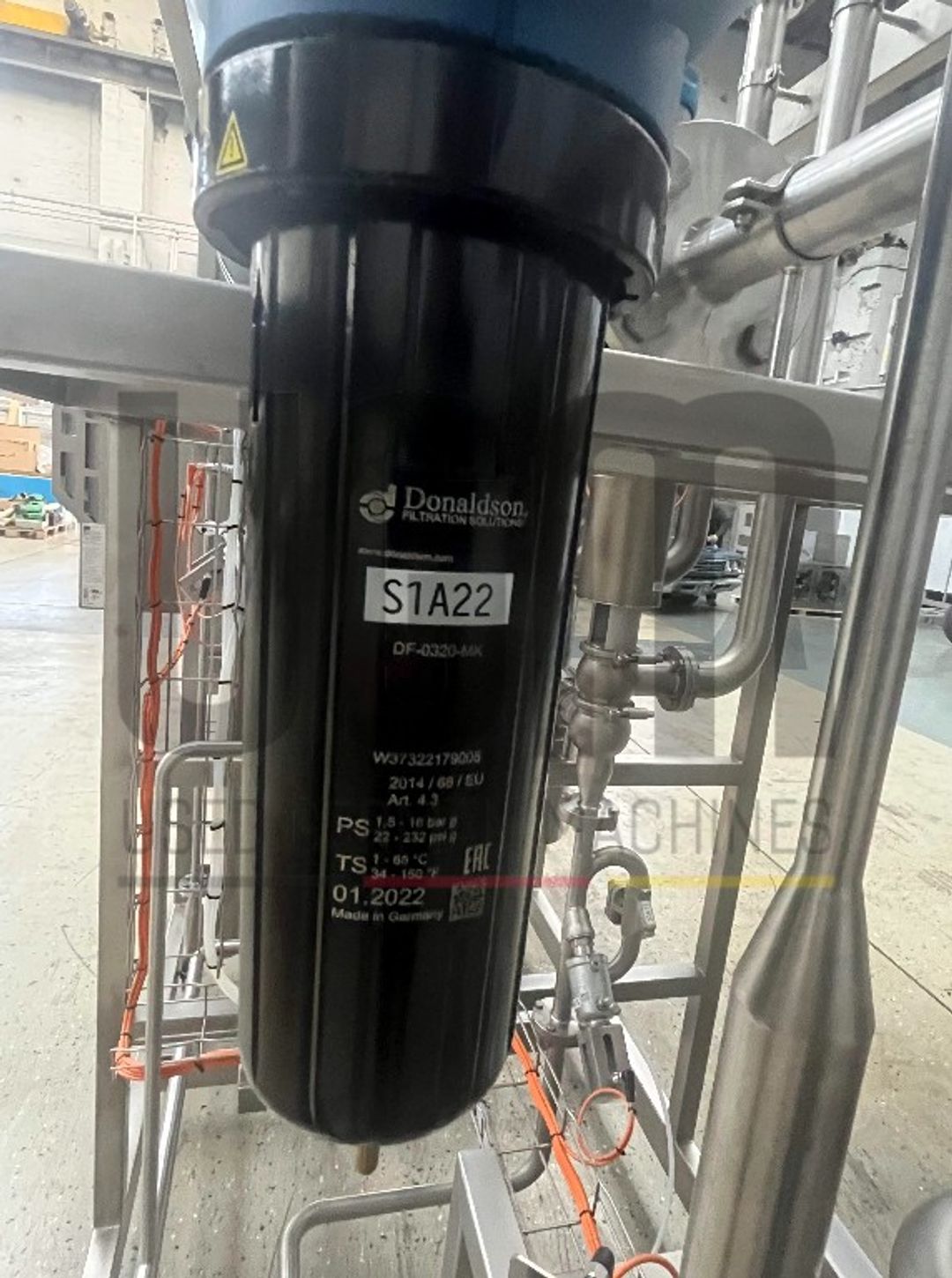

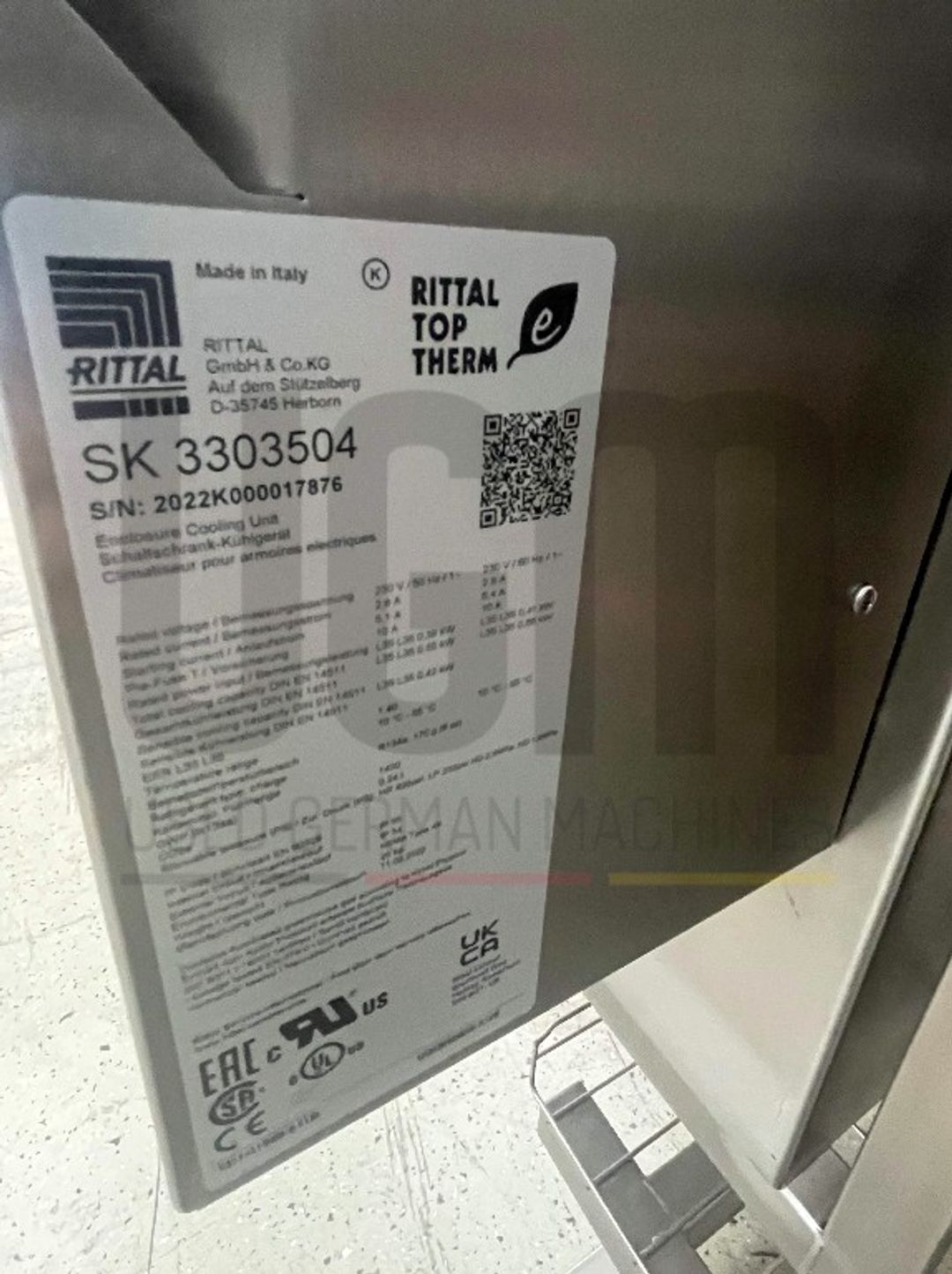

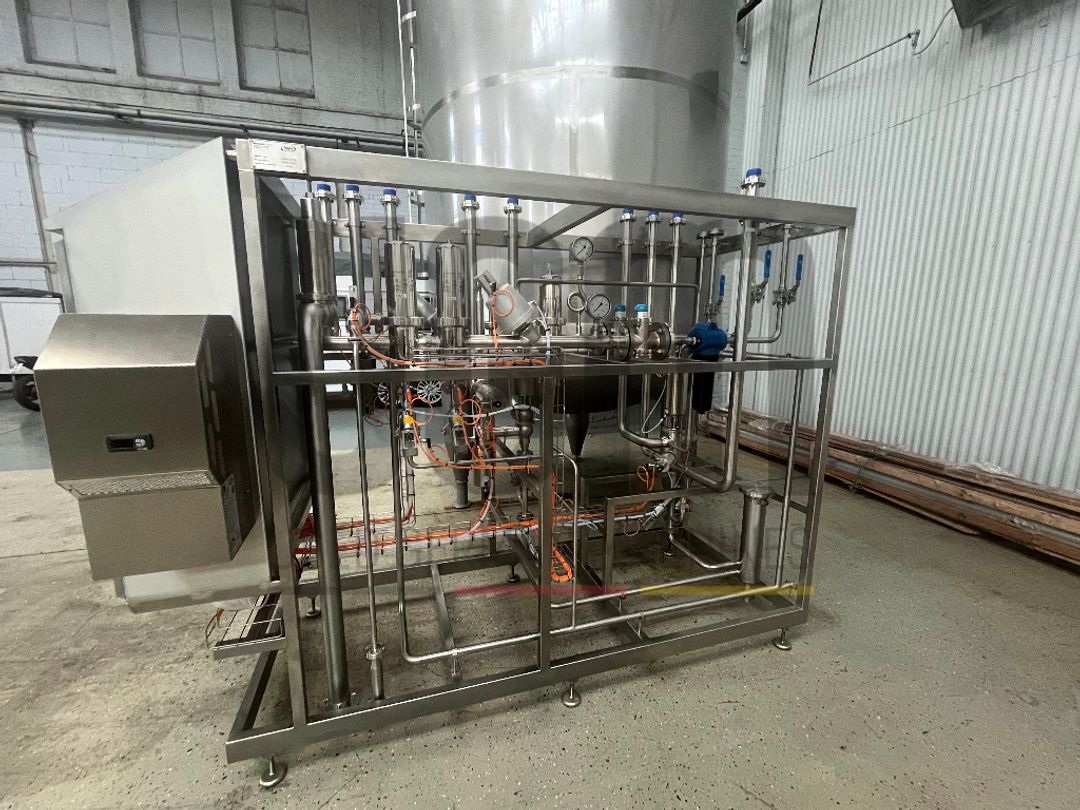

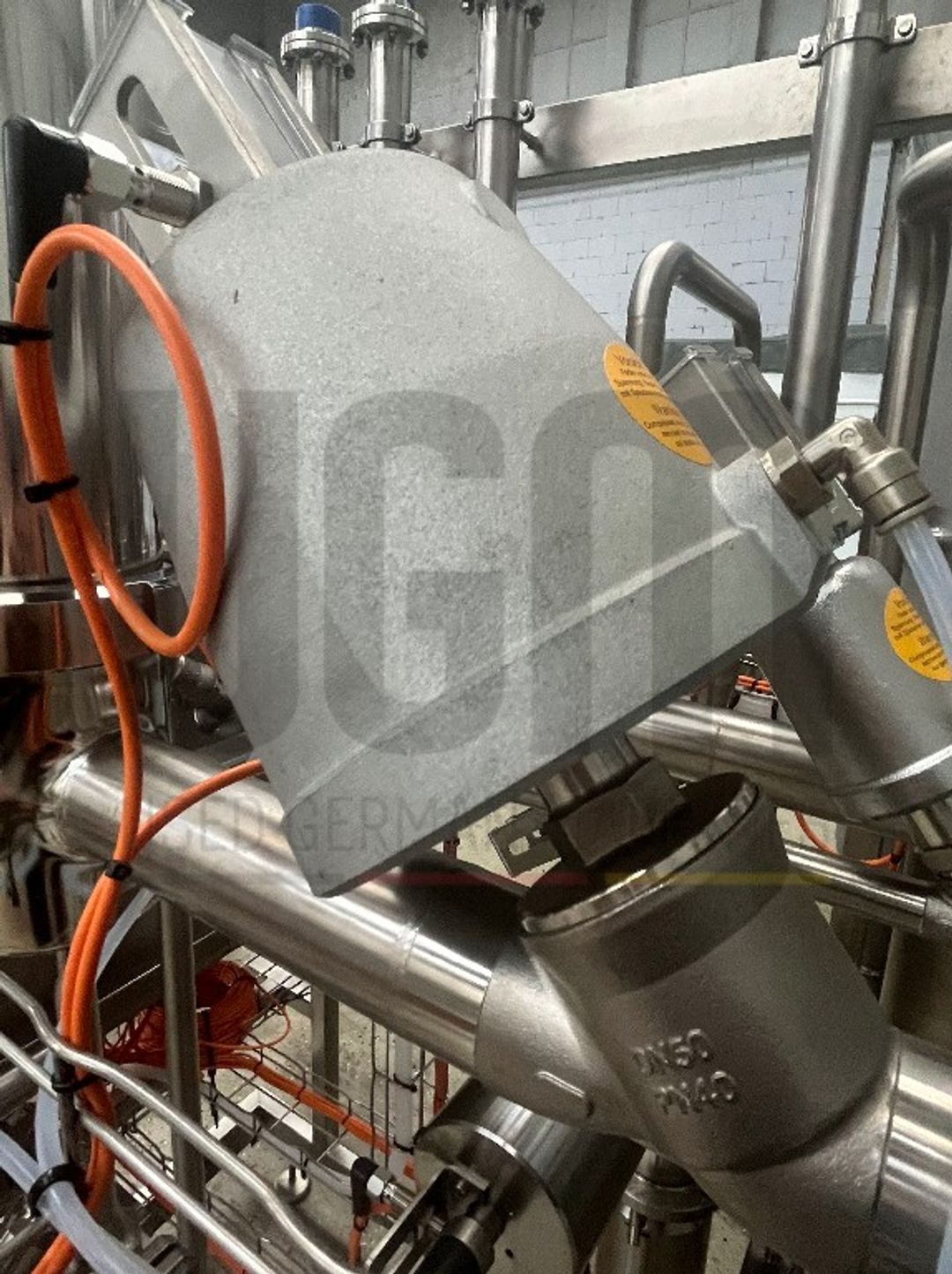

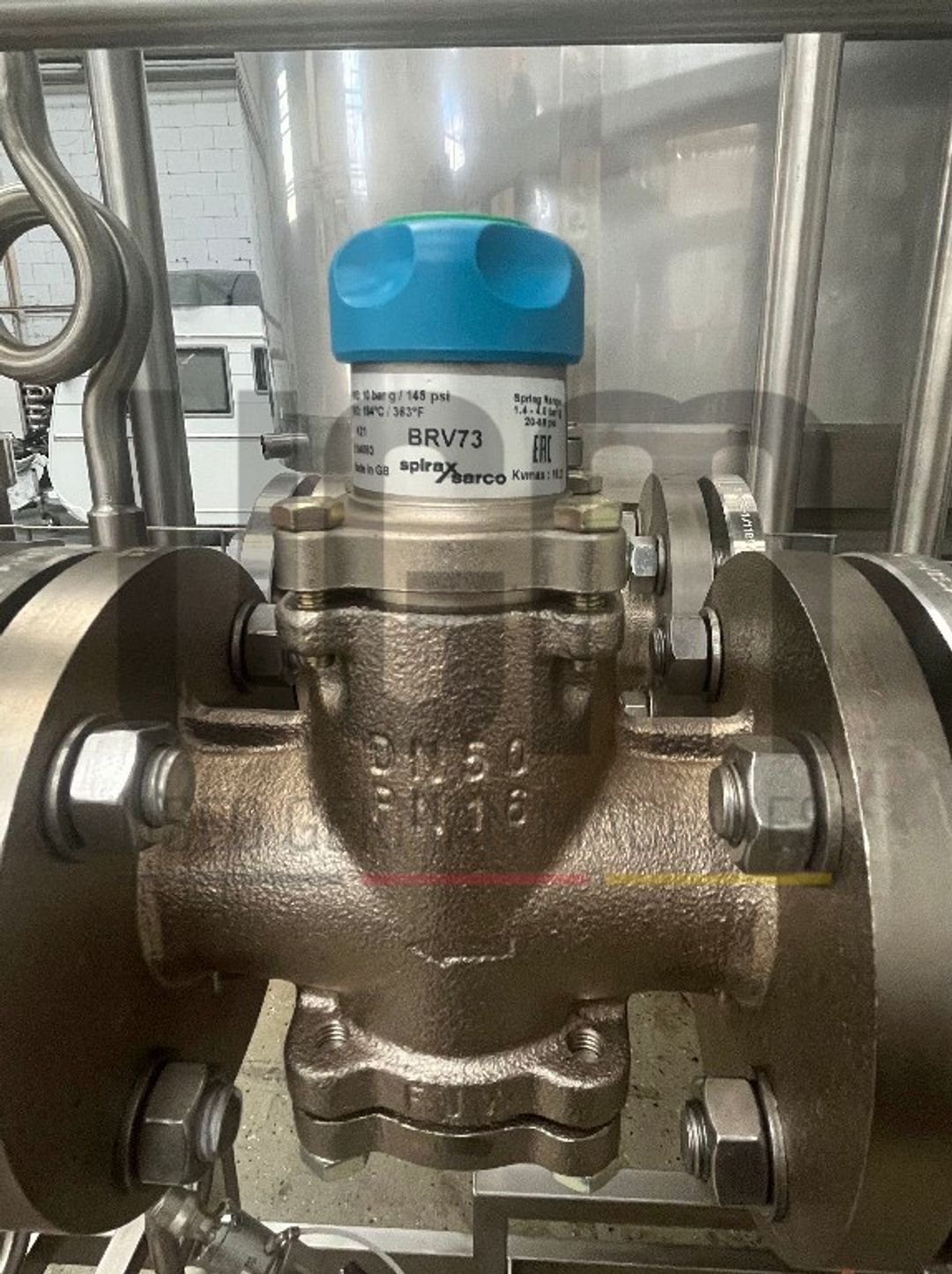

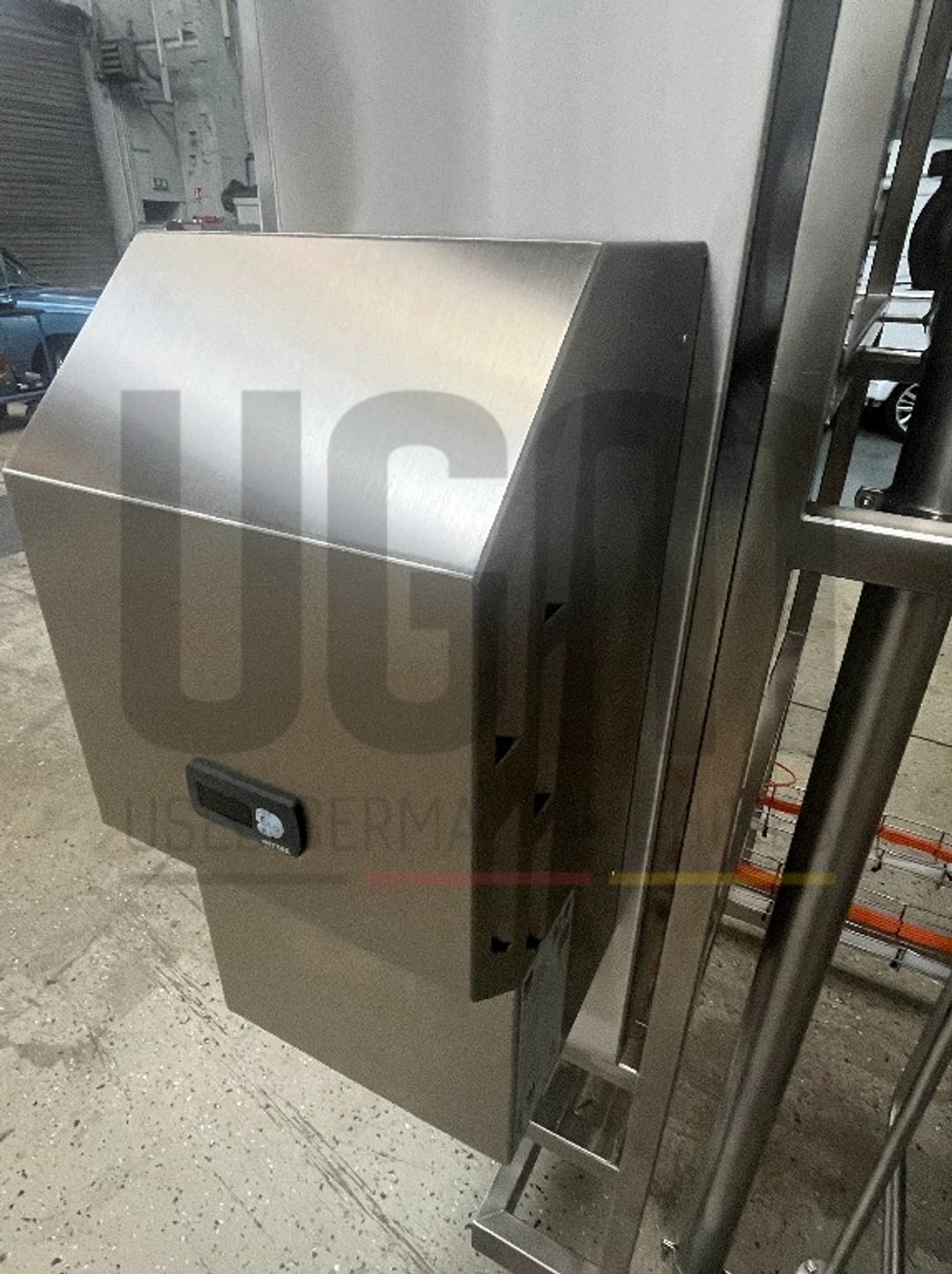

Complete Sterile Tank Unit with PLC and Aseptic Valve Cluster High-quality sterile tank unit designed for hygienic storage and handling of liquid food products such as milk, juice, and similar beverages. The system includes a fully automatic aseptic valve cluster with PLC control and HMI, ensuring reliable operation and integration into modern aseptic processing lines. Main Tank Specifications - Tank Product Capacity: 12,740 liters (12.74 m³) - Working Capacity: 10,850 liters (10.85 m³) - Water Capacity: 662 liters - Maximum Pressure: 3.5 bar - Minimum Pressure: -1.0 bar - Test Pressure: 5.8 bar - Maximum Temperature: 145 °C Technical Data Materials - Product contact parts: 1.4404 stainless steel - Cooling jacket and legs: 1.4301 stainless steel Design Parameters - Design Pressure: +3.5 bar ÷ -1 bar - Design Temperature: 145 °C - Total Capacity: 12.74 m³ - Working Capacity: 10.85 m³ Standards and Certification - Design Norm / Testing: PED 97/23 - Design Approval: UDT Working Medium - Milk - Juice - Other liquid products on request Tank Surface Finish - Inside Surface: Grounded, Ra = 1.0 µm, passivated - Outside Surface: Jacket 2B, welds pickled - Dished-Ends and Legs: Grounded to grit 180 Tank Dimensions - Internal Diameter: 2,400 mm - External Diameter: 2,460 mm - Cylindrical Height: 2,000 mm - Top and Bottom Dished-End: according to DIN 28013, h = 35 mm - Outlet Height: 780 mm Wall Thickness - Bottom and top dished-end: 6 mm - Inner shell: 10 mm - Water jacket (non-pressure, shell and bottom): 2 mm Design Features - Vertical tank design - Non-pressure water jacket on the shell only - Without insulation - Mounted on three adjustable pipe legs - One leg prepared for load cell installation (without load cell) + dummy load cell Tank Equipment Top Equipment - T1: Paddle agitator with steam barrier and mechanical seal - T2: Pressure manhole DN 450 on top dished-end – 1 unit - T3: Sterile air inlet SMS 63.5 with part male – 1 unit - T4a: CIP connection SMS 51 with rotary spray ball head – 1 unit - T4b: CIP connection SMS 38 with rotary spray ball head – 1 unit - T5: Lifting lugs – 2 units Shell Connections - S1: Water outlet SMS 101.6 female – 1 unit - S2: Water inlet SMS 51 female – 1 unit Bottom Equipment - B1: Product inlet/outlet SMS 51 female – 1 unit - B2: Separate product outlet SMS 51 – 1 unit - B3: Vortex breaker 110 × 310 – 1 unit - B4: Lifting lugs – 2 units Documentation - Documentation available in English only - Declaration of Conformity according to European Pressure Equipment Directive (PED) Optional Equipment (Included in Price) - Handrail - Aluminum ladder Control System and Valve Cluster - The unit includes a complete sterile valve cluster with: - Air-conditioned electrical stainless steel cabinet - PLC control unit - HMI interface - Fully automatic aseptic valve control Key Advantages - Complete sterile tank unit with aseptic valve cluster - Designed for milk, juice, and liquid food products - High hygienic standard with CIP connections and sterile air inlet - PLC-controlled automation with HMI - Robust stainless steel construction - Suitable for integration into aseptic processing and filling lines
